A vortex tube can generate both extremely cold and hot air streams from compressed air, with temperature ranges typically reaching as low as −40°F (−40°C) on the cold side and up to 260°F (127°C) on the hot side. This article explains the factors that influence the vortex tube temperature range and demonstrates how industries use this technology for precise and reliable spot cooling applications.
A vortex tube is a compact device that separates compressed air into two distinct air streams: one extremely cold and one extremely hot. Because it operates without moving parts, electricity, or refrigerants, it has become a popular solution for industrial spot cooling and localized temperature control. One of the most common questions engineers and maintenance teams ask is about the vortex tube temperature range and how much temperature separation can actually be achieved.
Understanding the temperature capabilities of vortex tubes helps determine whether they are suitable for cooling electronics, machining operations, plastic processing, or enclosure temperature control. The actual temperature range depends on several variables such as compressed air pressure, inlet air temperature, and the cold fraction setting of the vortex tube.
A typical industrial vortex tube can produce cold air temperatures as low as -40°F (-40°C) and hot air temperatures reaching approximately 260°F (127°C) under optimal operating conditions. This wide temperature differential occurs through the Ranque-Hilsch effect, where compressed air entering the tube spins at very high velocity, separating into hot outer layers and cold inner layers.
The cold air exits from one end of the tube while the hot air exits from the opposite end. By adjusting the control valve, operators can change the cold fraction and therefore modify the temperature output and cooling capacity.
The following table illustrates typical temperature ranges achievable with industrial vortex tubes operating at approximately 100 PSI (6.9 bar) compressed air supply.
| Operating Condition | Inlet Air Temperature | Cold Air Temperature | Hot Air Temperature | Temperature Differential |
|---|---|---|---|---|
| Standard operation | 70°F (21°C) | 20°F (-7°C) | 140°F (60°C) | 120°F (67°C) |
| High cold fraction | 70°F (21°C) | -10°F (-23°C) | 160°F (71°C) | 170°F (94°C) |
| Maximum separation | 70°F (21°C) | -40°F (-40°C) | 260°F (127°C) | 300°F (167°C) |
These values are representative of many industrial vortex tube systems, though real-world results may vary depending on compressed air quality, supply pressure, and environmental conditions.
Several operational parameters affect the achievable vortex tube temperature range. Understanding these factors helps optimize cooling performance in industrial applications.

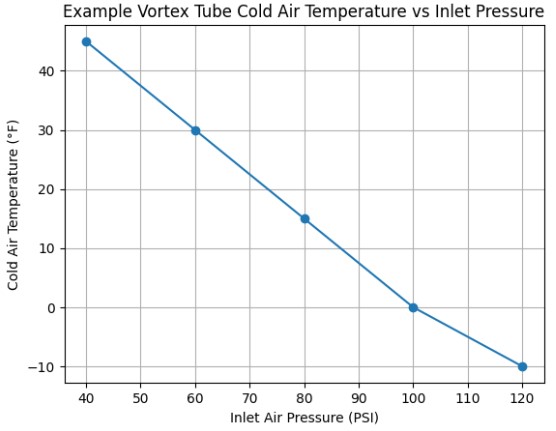

Higher inlet pressure generally increases the temperature separation produced by the vortex tube. Most industrial units are designed to operate between 80 and 120 PSI. Operating below this range may reduce cooling capacity and achievable temperature drop.
The temperature of the compressed air entering the vortex tube directly affects the resulting cold and hot air streams. If inlet air is already warm, the cold air output will also be warmer compared to systems supplied with cooler compressed air.
The cold fraction refers to the percentage of air exiting through the cold end. Adjusting this parameter changes both airflow and temperature. Lower cold fractions typically produce colder air, while higher cold fractions increase airflow but slightly reduce the temperature drop.
Moisture and oil contamination can affect vortex tube performance. Using filter separators and oil removal filters helps maintain consistent temperature output and prevents icing in extremely cold conditions.
The wide vortex tube temperature range makes the technology suitable for many industrial environments where conventional refrigeration systems are impractical.
Because vortex tubes operate solely using compressed air, they are commonly installed in locations where electrical cooling systems are difficult to maintain or where reliability is critical.
A precision machining company working with aluminum aerospace components experienced frequent overheating of cutting tools during high-speed milling operations. Traditional coolant systems created excessive mist and required constant maintenance, while external fans were ineffective at removing heat from the cutting zone.
The engineering team installed a vortex tube cooling solution connected to their existing compressed air supply. The system produced a cold air stream close to -20°F (-29°C), directed precisely at the cutting interface. The cold air stream reduced tool temperature significantly during machining operations.
After implementation, the manufacturer reported improved machining stability, reduced thermal expansion in the cutting area, and longer tool life during extended production cycles. The vortex tube cooling setup required minimal maintenance and operated continuously without electrical components.
The vortex tube temperature range is one of the primary reasons the technology is widely used across industrial environments. By producing both extremely cold and hot air streams from a single compressed air source, vortex tubes provide a flexible cooling solution that can be adapted to many processes requiring localized temperature control.
