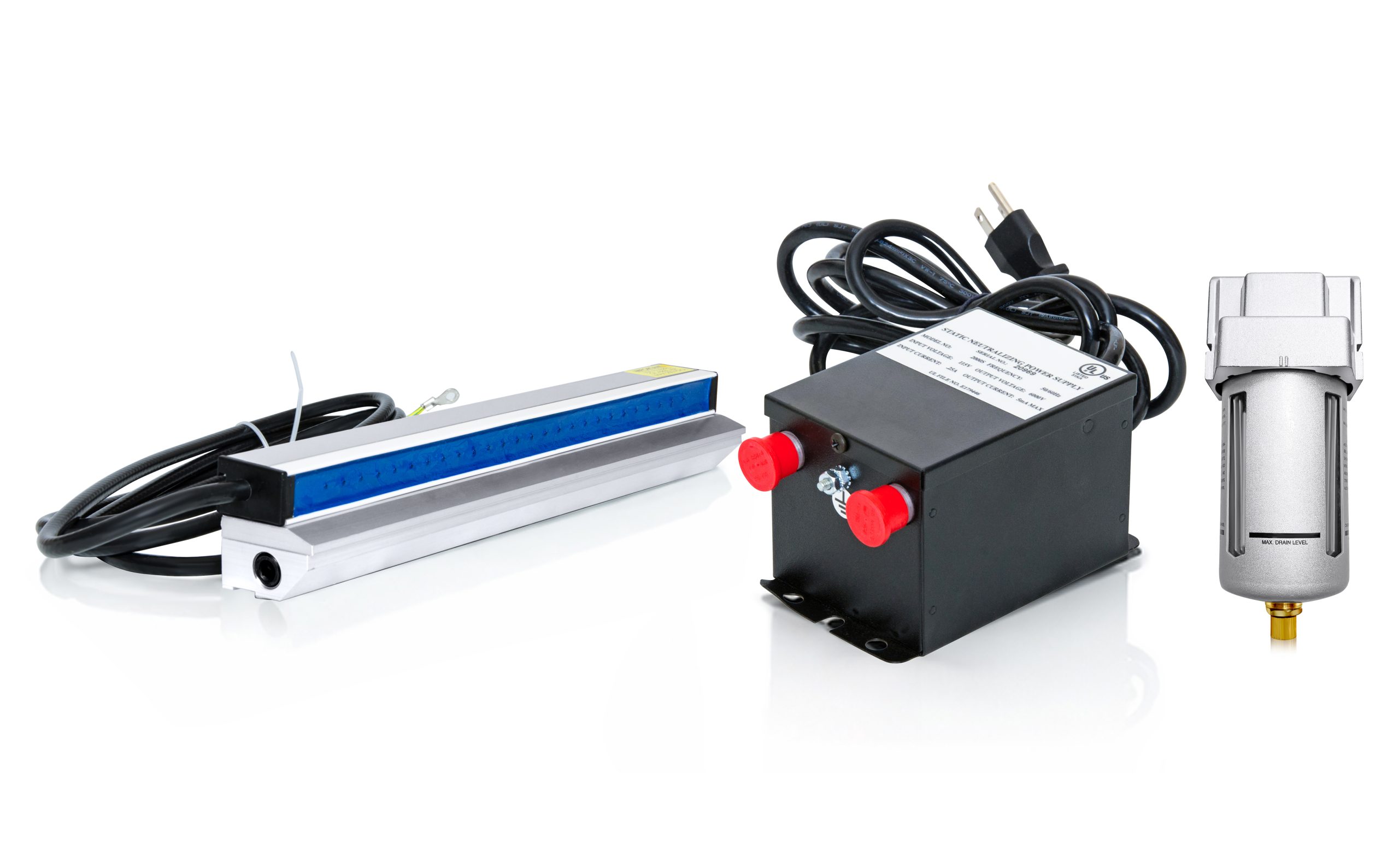

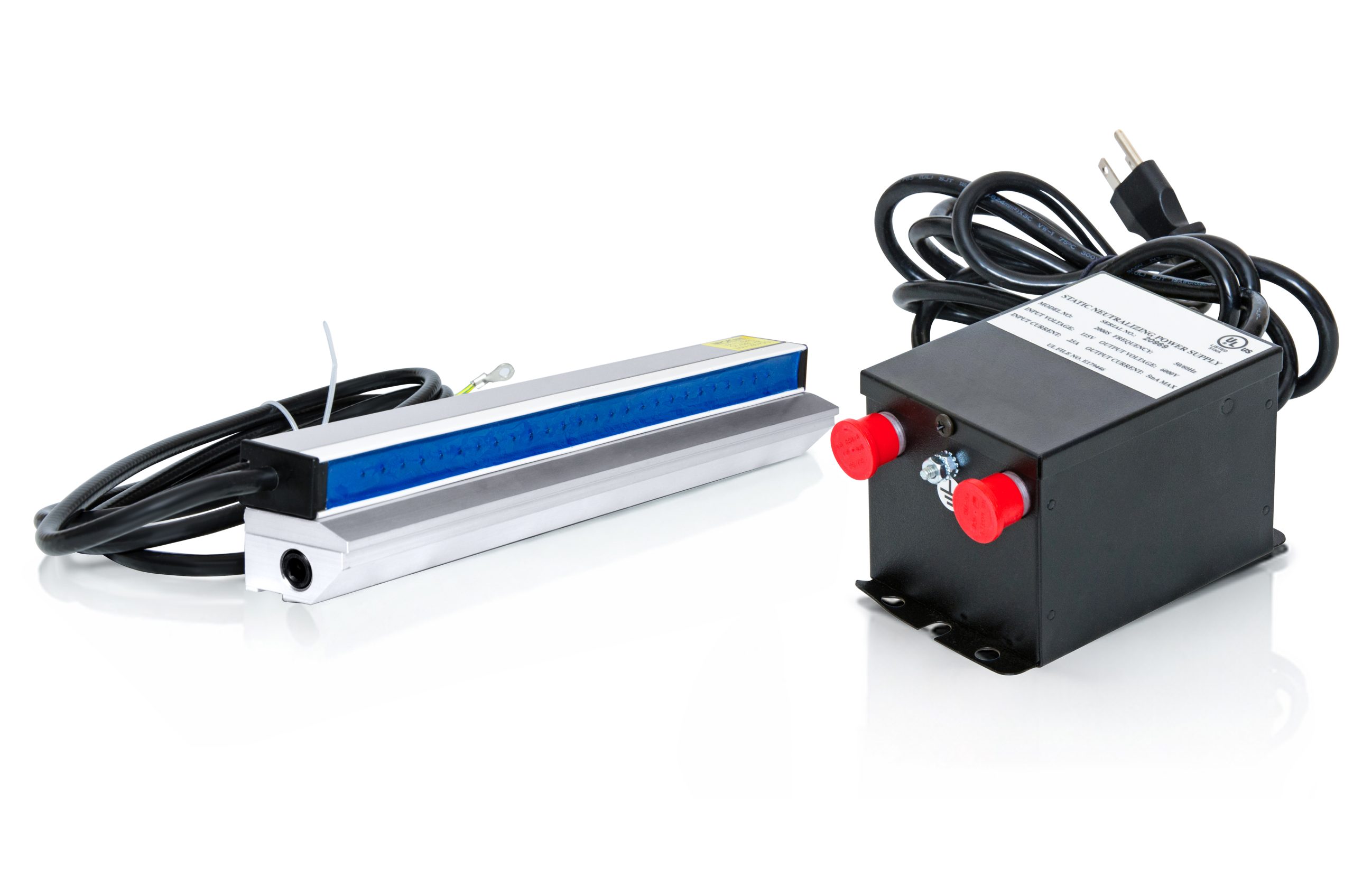

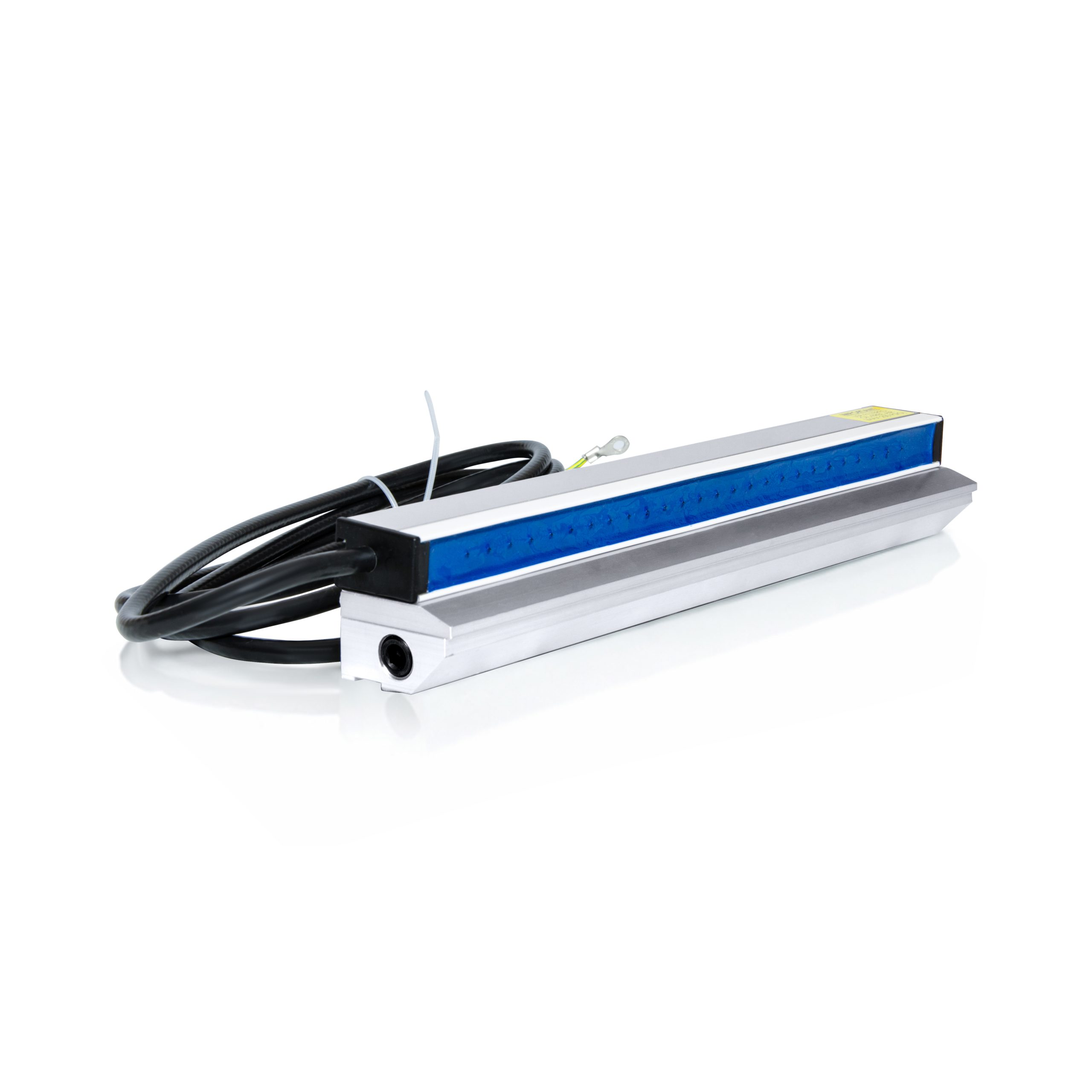

Supreme Ion Air Knife

Supreme Ion Air Knife

The Supreme Ion Air Knife is our flagship static eliminator, engineered for maximum efficiency, the lowest possible noise levels, and the furthest reaching ion stream. It is the industry gold standard for high-speed production lines and automated systems.

SKU: N/A Category:

Supreme Ion Air Knife General Information

What does it do?

By utilizing a high-efficiency 40:1 air amplification ratio, the Supreme model entrains massive amounts of ambient air, meaning it uses roughly 25% less compressed air than the Regular model while providing a more uniform, laminar sheet of ions. It can kill a 5kV charge in less than 0.2 seconds from a distance.

When to use it?

  • High-Speed Webs: When production speeds exceed 1,000 feet per minute.
  • Distant Targets: When the unit must be mounted 10″ to 20″ away from the product (up to 20 feet for area neutralization).
  • Noise-Sensitive Areas: When meeting strict OSHA noise requirements (69 dBA) is a priority.
  • Energy-Saving Initiatives: When the goal is to reduce long-term factory utility costs by minimizing compressed air waste.

Technical Specifications

Feature Specification
Air Amplification
40:1 (Highest Efficiency)
Air Consumption
~2.9 SCFM per inch at 80 PSIG
Sound Level
69 dBA (Whisper Quiet)
Effective Range
Up to 20 feet (6m)
Neutralization Speed
0.18 seconds at 6″ (80 PSIG)

Supreme Ion Air Knife | Performance Specifications

The following table outlines the operational efficiency and discharge speeds of the Supreme Ion Air Knife across various pressure levels.
Pressure Supply (PSIG) Pressure Supply (BAR) Air Consumption* (SCFM) Air Consumption* (SLPM) Sound Level (dBA) Dissipates 5kV** (Seconds)
5
0.3
3.7
105
39
0.40
10
0.7
5.5
156
51
0.33
20
1.4
13.2
372
57
0.26
40
2.8
20.4
576
61
0.23
60
4.1
27.6
780
65
0.21
80
5.5
34.8
984
69
0.20
100
6.9
42.0
1,188
72
0.18

Notes:
* Air consumption is measured per 12” (305mm) section of knife length.
** Static decay measured from a distance of 6″ (152mm) from the target.

Key Performance Highlights

  • Ultra-Quiet Operation: Even at 80 PSIG, the noise level remains below OSHA limits (69 dBA).
  • Rapid Static Decay: Capable of neutralizing 5kV in under 0.20 seconds at standard operating pressures.
  • Compressed Air Efficiency: Designed to minimize consumption while maximizing ionized airflow for high-speed applications.

Standards, Certifications, and Compliance

Supreme Air Products is committed to engineering solutions that prioritize operator safety, environmental responsibility, and international regulatory compliance.

Supreme Ion Air Knife | Safety & Noise Standards

The Supreme Ion Air Knife is engineered to meet rigorous industrial safety mandates, ensuring a high-performance environment that protects your workforce.

  • OSHA Compliance: Meets or exceeds OSHA standard 1910.242(b) for safety and dead-end pressure.
  • EU General Product Safety: Fully compliant with the EU General Product Safety Directive (2001/95/EC).
  • Acoustic Excellence: Meets the noise limitation requirements of the EU Machinery Directive (2006/42/EC).
    • Note: All sound level measurements are validated at a distance of 3 feet (0.91m) to ensure accurate field-performance data.

Intellistat Series & Ionizing Components

Our precision ionizing tools and power systems undergo stringent testing to meet global electronics and safety benchmarks.
Product Category Certifications & Compliance
Ion Air Gun
UL Listed, CE Certified, and RoHS Compliant.
Ionizing Bars
UL Component Recognized (U.S. & Canada), CE, EMC, and RoHS Compliant.
Power Supplies
UL Component Recognized (U.S. & Canada), CE, EMC, and RoHS Compliant.

Compliance Definitions

  • CE & EMC: Ensures our products meet the health, safety, and environmental protection standards for products sold within the European Economic Area.
  • RoHS: Guarantees that our equipment is free from hazardous substances, supporting sustainable and safe manufacturing.
  • UL Recognized: Validates that the components have been evaluated by Underwriters Laboratories for integration into larger industrial systems.

Supreme Ion Air Knife FAQ

Maintaining the system is straightforward because the Air Knife actually helps keep the Ion Bar clean by providing a constant “purge” of air. To ensure maximum ion output:

  • Daily: Ensure your compressed air is clean and dry (use a 5-micron filter).
  • Periodically: Turn off the power and wipe the emitter points with a quick-dry solvent like IPA. This prevents “cloverleaf” dust buildup which can shroud the ions.

Static isn’t “cured”; it’s neutralized. If your material hits another roller, guide, or even moves through dry air at high speeds after the Ion Air Knife, friction (tribocharging) will recreate the charge.

The Fix: Position the Supreme Ion Air Knife as the absolute final step before the material is wound, stacked, or packaged.

We strongly advise against it. Ions are “social”—if they are forced through a tube or duct, they will bump into the walls and neutralize themselves before they ever reach your target.

Our Digital Static Meter is your “eyes” in the process. It doesn’t just show a number; it identifies the polarity of the charge (Positive vs. Negative) and the intensity.

  • A successful setup should show a drop from several thousand volts down to nearly zero (±0.05kV) after the air curtain hits the surface.

Not at all. While the power supply generates high voltage (to create the ions), it does so at an extremely low current (milliamps). The total draw is typically less than 50 Watts—roughly the same as a single household lightbulb.

It comes down to Speed and Distance.

  • Choose the Bar Only: For slow-moving webs where you can mount the bar within 1″ of the material.
  • Choose the Supreme Ion Air Knife: For high-speed lines (over 200 FPM), 3D parts, or when you need to remove dust while neutralizing the charge from up to 20 feet away.

For the fastest “decay rates” (neutralization speed), mount the knife 6 to 12 inches away from the material, angled slightly against the direction of travel. This creates a “turbulent bath” of ions that ensures total surface coverage.

We offer the most flexible sizing in the industry. Our Supreme Ion Air Knives come in stock lengths from 3″ to 96″. If your application is wider, our modular design allows you to “butt-bond” multiple units together to create a continuous, seamless air curtain of any length.

Yes. Our system is modular by design. If you already own a Ionizing Bar, you can purchase the Supreme Air Knife separately along with our integration hardware. This is a cost-effective way to “supercharge” your existing static control.

No. Static electricity is a surface-level electrical imbalance, while magnetism is a molecular alignment within the metal. The Ion Air Knife is an expert at neutralizing electrons, but it has no effect on magnetic fields.
Standard ionizing bars create a “corona discharge” (a tiny, high-voltage arc). In areas with high concentrations of solvent vapors or explosive dust, this is a safety risk.

Supreme Ion Air Knife System Applications

1. Printing & Graphic Arts

  • Web Neutralization: Eliminating static on high-speed web presses to prevent paper tearing and ink misting.
  • Dust Removal on Substrates: Cleaning plastic, paper, or metal sheets before printing to ensure a “hickey-free” finish.
  • Screen Printing: Neutralizing static on garments or posters to prevent “spider-webbing” of ink.
  • Large Format Finishing: Cleaning and de-stating boards before lamination to prevent trapped bubbles and debris.

2. Plastics & Extrusion

  • Sheet & Film Extrusion: Removing the massive static charge generated as plastic film is wound onto rolls.
  • Pre-Paint Preparation: De-stating automotive bumpers or plastic housings before they enter the paint booth to ensure zero dust attraction.
  • Trimming & Scrap Removal: Blowing away plastic shavings from edges while neutralizing the charge so the scrap doesn’t stick to the product.
  • Injection Molding: Cleaning and de-stating parts as they are ejected from molds to prevent contamination.

3. Packaging & Labeling

  • Bottle & Can Cleaning: Removing dust and static from containers before filling or labeling to ensure labels adhere perfectly.
  • Bag Opening/Form-Fill-Seal: Using the air curtain to snap open pouches while neutralizing the static that causes thin films to “cling” together.
  • Sleeving & Shrink Wrapping: De-stating shrink-sleeve labels so they slide smoothly over containers without sticking prematurely.
  • Corrugated Board Dusting: Cleaning “cardboard dust” from boxes before they are packed with sensitive food or medical items.

4. Electronics & Semiconductors

  • PCB Cleaning: Removing microscopic debris from circuit boards before soldering or testing without risking ESD (Electrostatic Discharge) damage.
  • Display Manufacturing: Cleaning glass panels for TVs or smartphones where a single speck of dust can cause a pixel defect.
  • Component Packaging: De-stating tape-and-reel components to prevent them from “jumping” out of their pockets due to static attraction.

5. Converting & General Manufacturing

  • Slitting & Rewinding: Neutralizing the intense static spikes created during the slitting process of films and papers.
  • Wood Finishing: Blowing off sawdust from furniture panels before the final varnish or laminate application.
  • Environmental Separation: Creating an “ion curtain” across a door or opening to keep dust and insects out of a clean production zone.
  • Textile Processing: Controlling static on synthetic yarns and fabrics to prevent “nesting” or tangling during high-speed weaving.
  • Automotive Parts Cleaning: Final “blow-down” of engine components or dashboards to remove machining residue and prevent re-contamination.

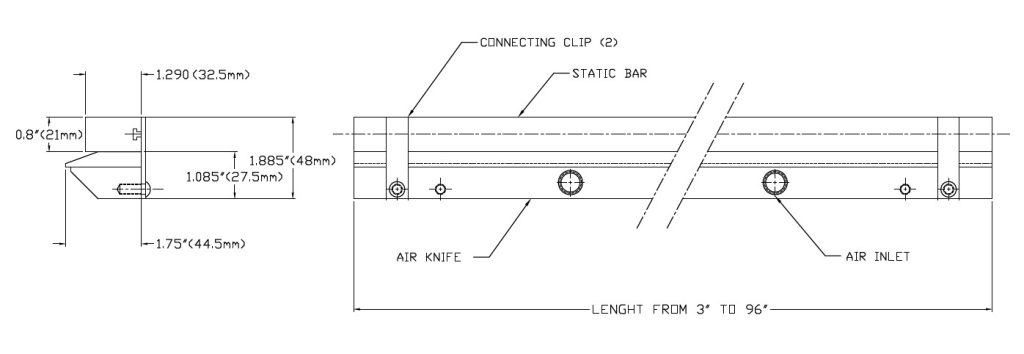

Dimensions

Supreme Ion Air Knife
