Air Jet

Air Jet

Our High Flow Air Jet is fully adjustable and is constructed of aluminum which has been anodized to withstand harsh industrial environments. Airflow and thrust are easily adjusted by a locking ring! It have ¾” (19 mm) diameter outlet /w 1/8″ NPTF inlet.

SKU: SAJHF Category:

What is an Air Jet

An industrial air jet is a high-efficiency air amplification device engineered to convert a small amount of compressed air into a powerful, high-velocity air stream. By leveraging the Coanda effect, these pneumatic air jets pull in surrounding ambient air to create a high-volume flow, making them an energy-efficient alternative to noisy, open-pipe blow-offs. Whether used for part ejection, industrial cooling, or debris removal, the Supreme Air Products air jet series delivers maximum impact with significantly reduced noise levels (dBA).

The Supreme Air Jet Series

Precision Air Amplification. No Shims. No Compromise.

Industrial blow-off is rarely “one size fits all.” That’s why Supreme Air Products has engineered two distinct classes of Air Jets. Whether you need a gentle curtain of air for cooling or a high-impact blast to eject heavy parts, our Adjustable Lock-Ring Technology ensures you have the exact force you need, every time.

The Supreme High Flow Air Jet

Focus: Volume & Mass The High Flow Air Jet is designed for applications where air volume is the priority. Utilizing a larger internal exit opening, it entrains massive amounts of ambient air, making it the most efficient choice for thermal management.

  • Best For: Rapid cooling of molded parts, drying large surface areas, and moving smoke or fumes.
  • The Advantage: It creates a “soft” but high-volume flow that won’t damage sensitive components while maximizing energy savings.

The Supreme High Flow Air Jet

Focus: Impact & Force When the job requires “muscle,” the High Velocity Air Jet delivers. By constricting the exit opening, we increase the air’s kinetic energy to create a concentrated, high-impact stream that maintains its integrity over longer distances.

  • Best For: Heavy chip removal, ejecting parts from high-speed presses, and liquid blow-off from deep crevices.
  • The Advantage: Provides the highest “Thrust-to-CFM” ratio in our lineup, allowing you to do more work with less compressed air.

How It Works: The Coanda Effect

Both Supreme Air Jets utilize the Coanda Effect to amplify your compressed air.

  1. A small amount of compressed air is throttled through an internal ring nozzle at sonic velocity.
  2. This air “attaches” to the internal profile of the jet, creating a low-pressure area (vacuum).
  3. Ambient air is “entrained” into the stream at a ratio of up to $20:1$, resulting in a high-volume blast of air using only a fraction of the power.

Technical Specifications

Specification Supreme High Flow Jet Supreme High Velocity Jet
Primary Use
Cooling / Large Surface Drying
Part Ejection / Heavy Blow-off
Air Consumption
~17 SCFM @ 80 PSIG
~15 SCFM @ 80 PSIG
Force (at 12″)
16 Oz (453 Grams)
22 Oz (624 Grams)
Sound Level
81 dBA
82 dBA
Adjustment Method
Infinitely Adjustable Lock-Ring
Infinitely Adjustable Lock-Ring
Material
Lightweight Anodized Aluminum
Lightweight Anodized Aluminum
Competitors require you to disassemble the unit and insert plastic shims to change the flow. This leads to downtime and lost parts. Supreme Air Products uses a precision-threaded body. Simply loosen the lock-ring, twist the head to your desired flow, and lock it back in place. No tools, no shims, no wasted time.

FAQ: Air Jet

Most plants use open-ended pipes or copper tubes, which are “air hogs.” The Supreme Air Jet uses a small amount of compressed air to pull in a large volume of ambient air, providing the same force while using a fraction of the energy.

No. Unlike open pipes that “whistle” and hiss, our Jet is engineered for low noise, operating at just 65 dBA at 60 PSI.
Yes. By installing a pressure regulator on the supply line, you can adjust the thrust from a gentle breeze to a powerful blast for heavy scrap removal.
This is a mechanical air amplifier only. It is designed for blowing, drying, and cooling. If you have dust that “sticks” to surfaces or parts that cling together, you likely need our Ionizing version to kill the static bond.
The Jet is compact (approx. 2″ height/length) and features standard threaded fittings (1/8″ NPT with 1/8″ BSP options), making it easy to mount on machine frames or flexible “Stay-Set” hoses for targeted aim.
Yes. Our Air Jets meet OSHA safety requirements for dead-end pressure. Even if the nozzle is placed directly against skin, the air will escape through the side slots, preventing dangerous pressure buildup.
Absolutely. Because the Jet amplifies the airflow, it is an excellent tool for cooling hot plastic parts, gearboxes, or metal castings quickly and evenly.
For a 10 ft. run, we recommend a minimum 1/8″ pipe. For longer runs, use a larger bore pipe to avoid pressure drops that can weaken the jet’s performance.
Yes. With an aluminum nozzle and stainless steel components, the Supreme Air Products™ Air Jet is rugged enough for most industrial washdown areas.
Our Air Jets typically achieve an amplification ratio of up to 25:1, meaning for every 1 unit of compressed air used, 25 units of total air are delivered to the target.

Applications: Supreme Air Jet

  1. Parts Ejection: Blasting finished parts out of injection molds or stamping dies.
  2. Chip Removal: Blowing metal shavings and “chips” off CNC machinery and work surfaces.
  3. Conveyor Blow-off: Removing water or debris from products as they move down a high-speed line.
  4. Cooling Hot Parts: Rapidly cooling plastic or metal parts after extrusion or heat-treating.
  5. Drying After Washdown: Blowing excess water off bottles, cans, or machined parts before labeling or packing.
  6. Scrap Separation: Moving trim or scrap material into collection bins.
  7. Air Scrubbing: Creating a “curtain” of air to keep dust and fumes away from sensitive sensors.
  8. Bag Opening: Snapping open plastic bags on high-speed filling lines.
  9. Cleaning Deep Cavities: The focused beam of air is perfect for reaching into blind holes or 3D crevices.
  10. Ventilating Small Enclosures: Clearing out fumes or heat from small cabinets or machine housings.

Air Jet Dimensions

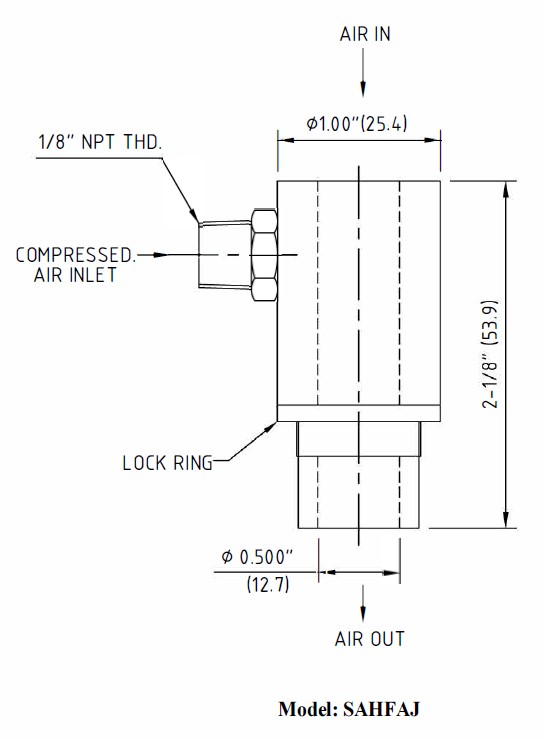

HIGH FLOW AIR JET DIMENSIONS

Download PDF

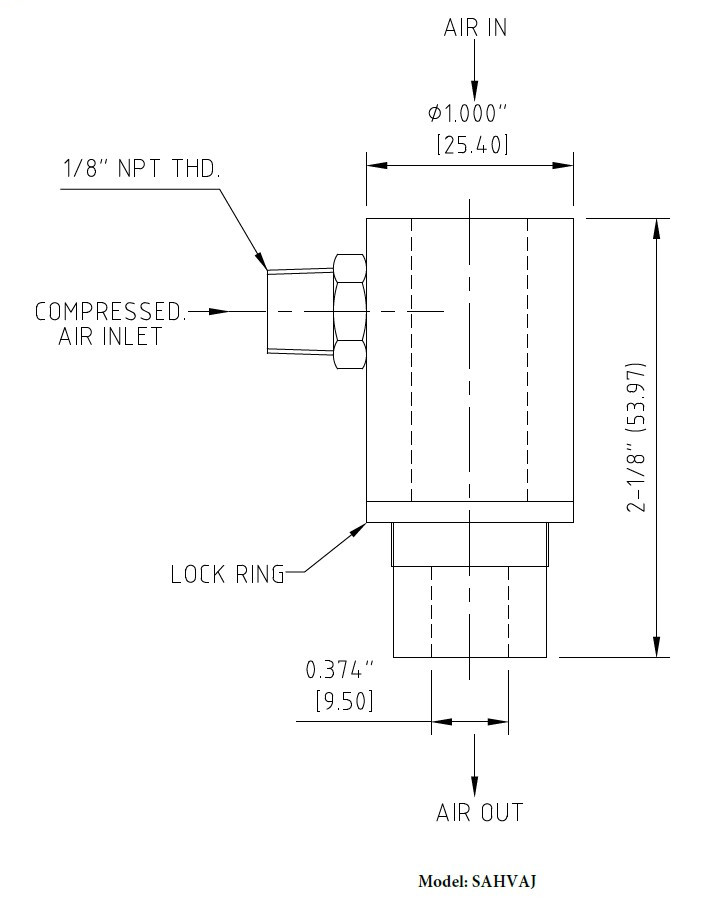

HIGH VELOCITY AIR JET DIMENSIONS

Download PDF
