Air Nozzle

Air Nozzle

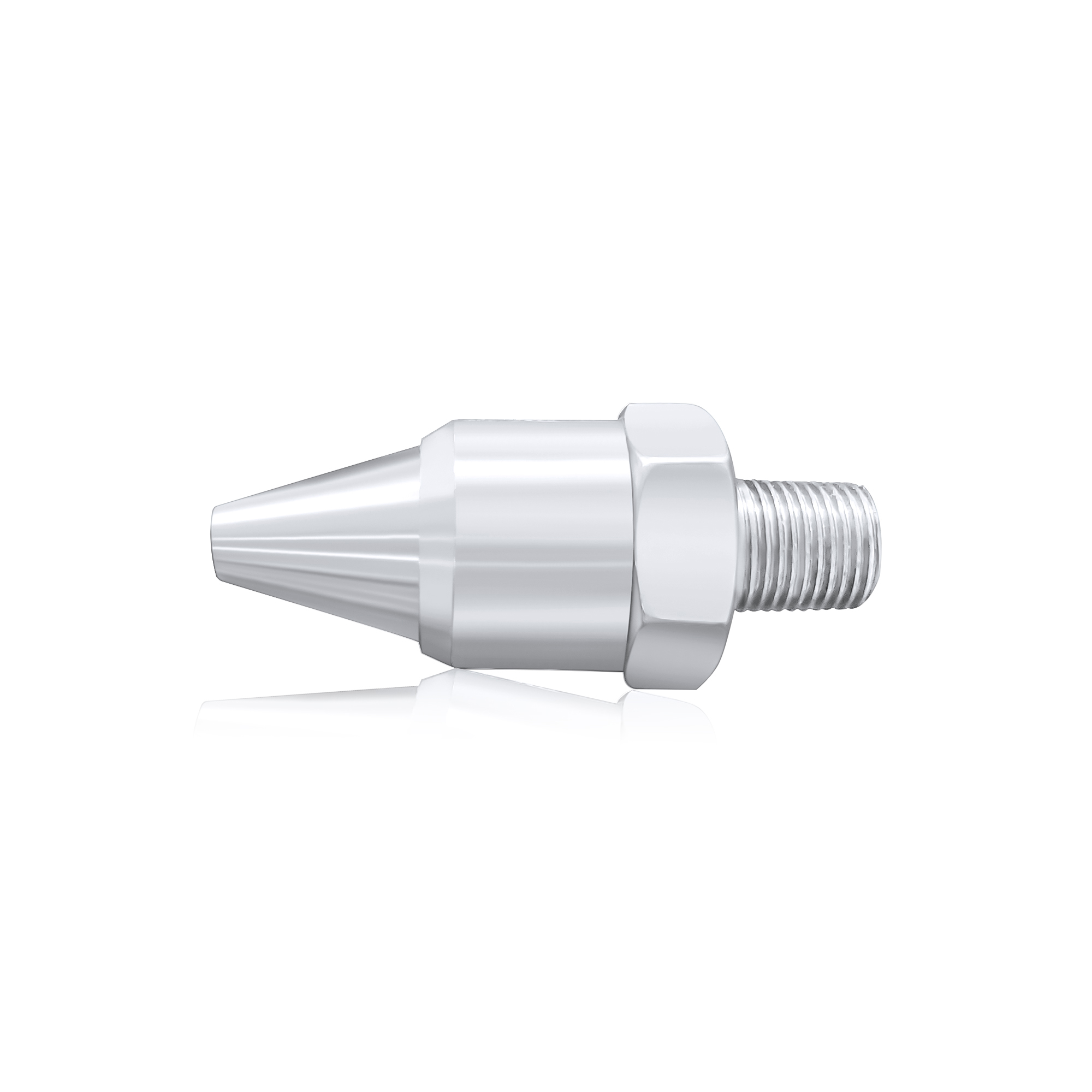

The Supreme Air Products Corp. Air Nozzle is used when a smaller area needs to be hit with amplified air. Available in either 1/8″ or 1/4″ male NPT connection, they are ideal for moving objects and for most blow-off applications involving liquids.

SKU: N/A Category:

Upgrade Your Blow-off Efficiency with Supreme Air Nozzles (1/8" & 1/4" NPT)

Product Overview: Stop wasting money on expensive compressed air. Supreme Air Nozzles are the industrial standard for efficient, high-impact blow-off, cooling, and drying. Designed to replace wasteful open copper tubes and pipes, our nozzles utilize advanced fluid dynamics to entrain large volumes of surrounding air. The result? A concentrated, high-velocity blast that delivers more force while using significantly less compressed air.
+1

Available in Aluminum for standard industrial use and 316 Stainless Steel for high-temperature, corrosive, or food-grade environments.

Why Choose Supreme Air Nozzles?

  • Dramatic Energy Savings: Reduces compressed air consumption by up to 80% compared to open pipes.
  • OSHA Safety Compliant: Engineered to meet OSHA standard 1910.242(b); these nozzles cannot be “dead-ended,” preventing dangerous backpressure buildup.
  • Noise Reduction: Significantly quieter than open-air lines, helping you meet strict workplace noise regulations.
  • Impactful Force: Ideal for heavy-duty parts ejection, liquid stripping, and high-speed drying.

Specifications

The Supreme Air Nozzle series is available in two standard sizes with multiple material options to suit your specific facility needs.
Feature 1/8" NPT Air Nozzle 1/4" NPT Air Nozzle
Material Options
Aluminum / 316 Stainless Steel
Aluminum / 316 Stainless Steel
Air Consumption
Approx. 10 – 15 SCFM at 80 PSIG
Approx. 18 – 25 SCFM at 80 PSIG
Sound Level
62 – 70 dBA
68 – 75 dBA
Max Temperature
Alum: 140°F / SS: 400°F+
+1
Alum: 140°F / SS: 400°F+
+1
Safety
OSHA & CE Compliant
+1
OSHA & CE Compliant
+1

FAQs

Open tubes have no way to control air volume. Supreme Nozzles use a small amount of compressed air to “pull in” the surrounding air, amplifying the force while using much less “paid-for” air from your compressor.
Aluminum is great for general assembly. Choose Stainless Steel for high-temperature applications (> 140°F), food-grade environments, or where corrosive chemicals are present.
Yes. Open pipes are one of the loudest things in a factory. Our nozzles are designed to produce a quiet, laminar flow, often reducing noise levels by 10 dBA or more.
No. They are engineered with safety slots so that if the nozzle is pressed against a surface (like skin), the air escapes through the sides, keeping the pressure below dangerous levels.
The 1/8″ is ideal for precision blow-off and small parts. The 1/4″ nozzle consumes more air but provides a much wider and more forceful blast for larger surface areas.
Absolutely. The high-volume airflow is excellent for drawing heat away from plastic or metal parts quickly and evenly.
No. They feature standard NPT threads and can be installed with a standard wrench onto your existing air lines or manifolds.
Yes. Our nozzles use standard 1/8″ and 1/4″ NPT threads, making them a direct, high-performance replacement for competitor nozzles.
Yes. We recommend using them with “Stay-Set” hoses so you can aim the air blast exactly where it’s needed without it moving during operation.
No. Unlike our ionizing products, these are purely pneumatic and only require a clean, dry compressed air supply.

Top 10 Applications

  1. Parts Ejection: Reliably blasting heavy parts out of stamping dies or injection molds.
  2. Liquid Stripping: Removing water, oil, or coolant from parts after washdown or machining.
  3. Chip Removal: Clearing metal or plastic shavings from CNC work surfaces and blind holes.
  4. Conveyor Drying: Drying the tops and sides of cans or bottles before labeling.
  5. Cooling: Rapidly cooling plastic extrusions or heat-treated metal components.
  6. Scrap Sorting: Using targeted force to move trim or rejected parts into collection bins.
  7. Conveyor Cleaning: Keeping belts free of crumbs, dust, or debris in packaging lines.
  8. Air Scrubbing: Creating a protective air barrier to keep dust away from sensitive optical sensors.
  9. Bag Opening: Instantly snapping open plastic bags on high-speed filling machines.
  10. Food Processing: (Stainless Steel models) Blowing excess coatings or water off food products in sanitary zones.

Dimensions

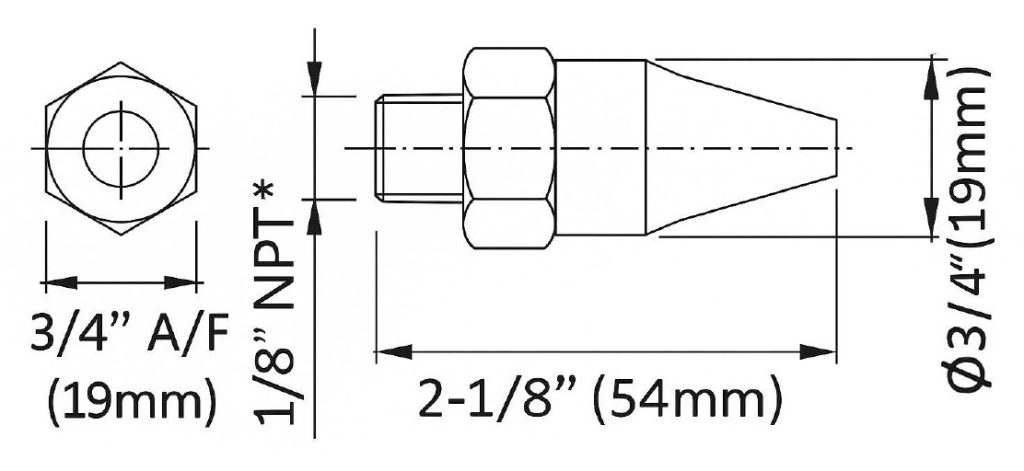

1/8” Air Nozzle

Download PDF

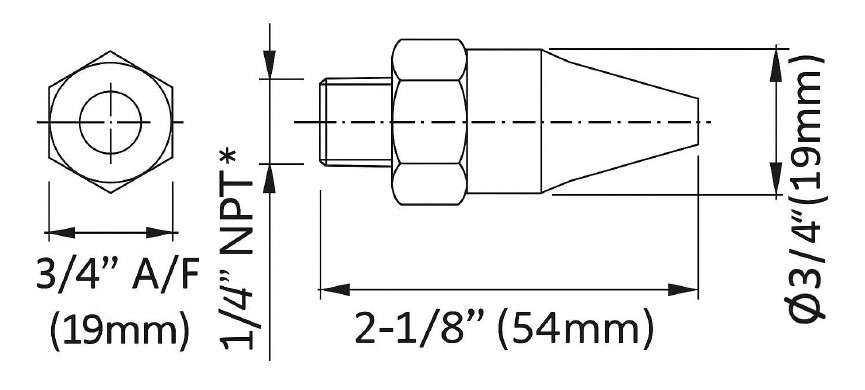

1/4” Air Nozzle

Download PDF
