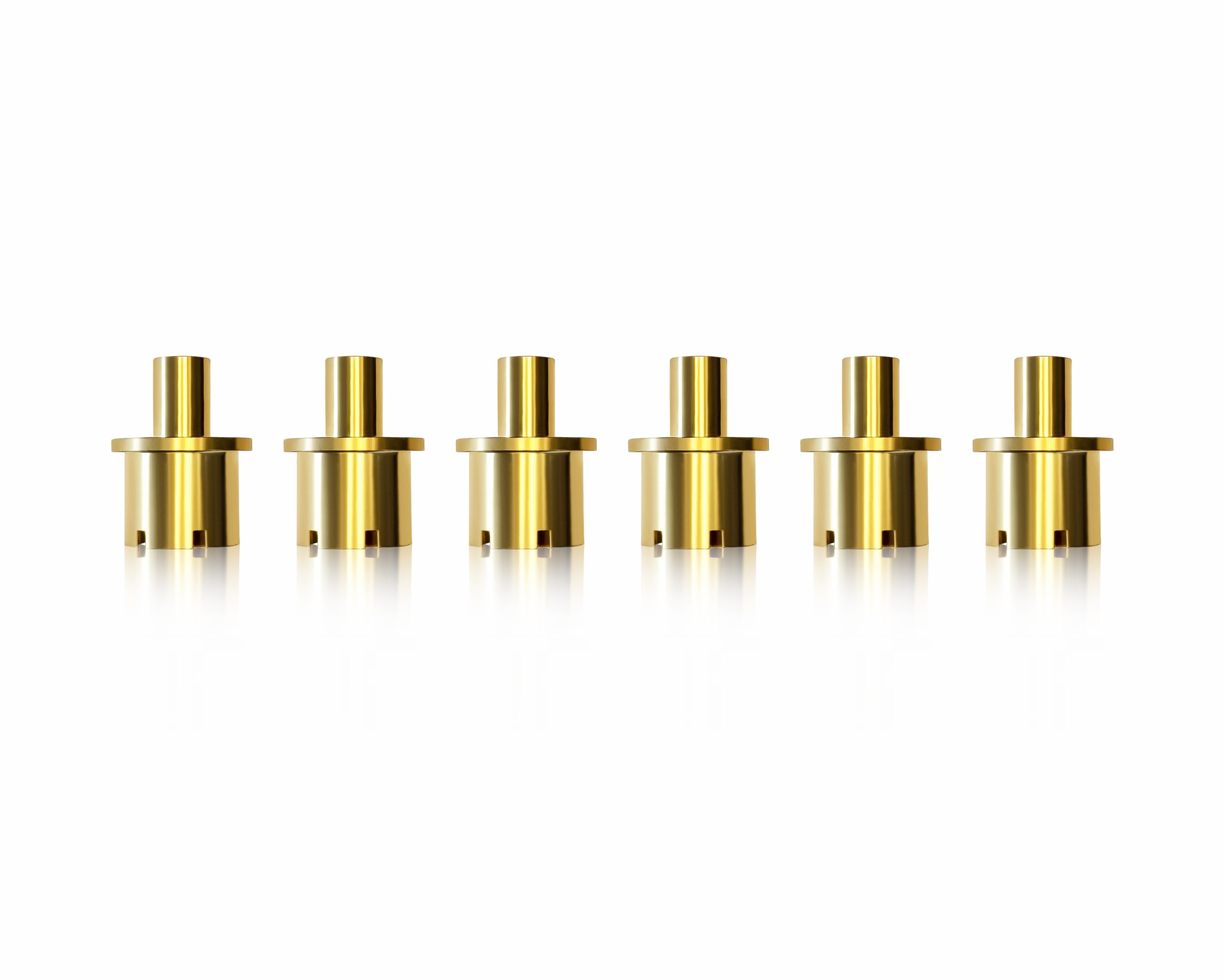

Medium Vortex Tube Generator Kit

Medium Vortex Tube Generator Kit

The Supreme Air Products™ Medium Vortex Tube Generator Set is the essential performance-tuning kit for our mid-sized cooling system. These precision machined internal generators allow you to customize the airflow and cooling capacity of your Medium Vortex Tube to match your specific industrial requirements. By simply swapping the generator, you can scale your product from a low-consumption air saver to a high-capacity cooling powerhouse, ensuring you never use more compressed air than the job demands.

150.48 $USD

SKU: VTMGENKIT Category:

Technical Specifications

Engineered for high-volume airflow and maximum thermodynamic efficiency, these generators are the “engine” inside your cooling system.
Specification Details
Compatibility
All Supreme Air Products™ Medium Vortex Tubes
Material
Brass
Available Flows
10, 15, 25, 30, and 40 SCFM (Inlet Flow) B & C Series
Temperature Range
Adjustable for Cold Temperature or High Cooling Power
Precision Fit
Designed for 3/8″ NPT (Medium) Body Styles

Key Features & Benefits

  • Scalable Cooling Power: Whether you need 700 BTU/hr or up to 2,800 BTU/hr, this set allows you to reconfigure your existing hardware for different machines and environments.
  • Optimized Efficiency: Fine-tune your air consumption. If a job only requires 15 SCFM to maintain temperature, swapping to the 15 SCFM generator prevents the waste of using a 30 or 40 SCFM setup.
  • Instant Reconfiguration: No downtime for “factory service.” The user-serviceable design allows you to change the performance characteristics of your Medium Vortex Tube in under a minute.
  • Durable & Reliable: Built to withstand the high-velocity “vortex” environment, these generators resist thermal fatigue and maintain their precise tolerances over years of operation.

Installation & Optimization Tips

The “High-Flow” Advantage: For heavy-duty milling or large electrical enclosure cooling, the 25 or 30 SCFM generators are the industry standard for balancing air usage with aggressive heat removal.

Simple Maintenance: To install, unscrew the cold end cap of your Medium Vortex Tube. Ensure the generator is seated flat against the internal shoulder before reassembling to prevent air bypass.

Application Matching: Use the lower SCFM generators (10 or 15) for small part drying or light-duty spot cooling where air conservation is the priority.
